3 channel servo tester

About this item:

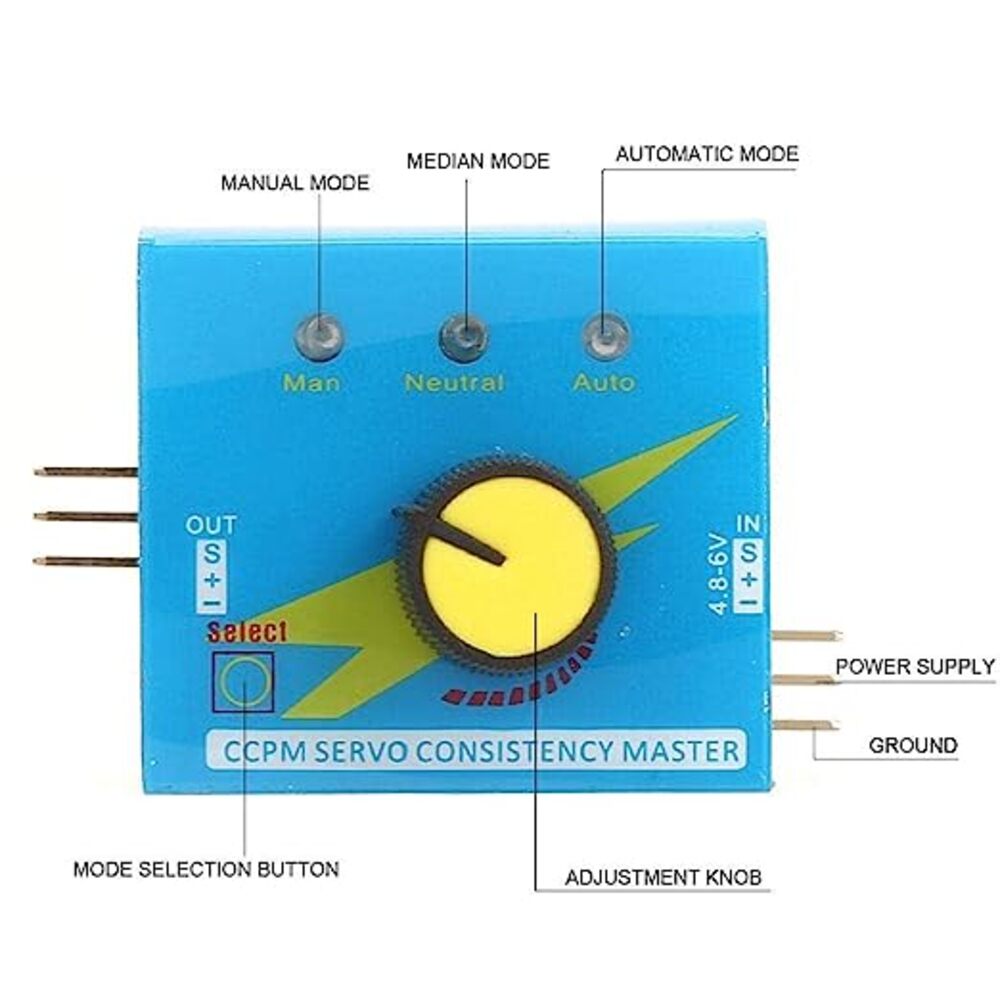

• The Servo Tester has 3 operation modes to check servo or ESC. The 3 operation modes are Manual Mode, Neutral Mode and Automatic "Window Wiper" Mode.
• Connect to up to 3 servos simultaneously | Offer 3 modes to check servos or ESC | LED indicators
• Dimensions: LxWxH:35x30x15mm | Knob Diameter:12mm
• Digital Multi Servo Tester can be used as a signal generator for electric speed controller (ESC) and servo motors, then you can test your motor system without using a transmitter and receiver. This servo tester is a highly useful tool to manually control and test servos and Brushless Motor ESCs. Just provide an input of 5V to the tester and connect your servo to one of the outputs. You can then manually control the servo rotatory angle by turning the onboard rotatory knob.
• Operating Voltage: DC 4.8-6V | Output Signal:1.5ms±0.5ms || Operation Modes: Automatic "Window Wiper" Mode: Makes the servo swing like a window wiper in the largest angle possible | Manual Mode: Turn the knob with different speed and check the reaction time | Neutral Mode: Makes the servo go back to the neutral point

Feature:

•  It is very convenient to detect and set the virtual bit, jitter and median of the server.
• 2. This servo tester can connect two sets of servos or ESC
• 3. The tester has good stability and high accuracy
• 4. You just need to turn the knob, then detect the servo.
• 5. It is very useful for testing the governor or motor performance. It is equivalent to a manual receiver function, which simulates the transmitter rudder through the knob.

Feature:

• 1. It is very convenient to detect and set the virtual bit, jitter and median of the server.
• 2. This servo tester can connect two sets of servos or ESC
• 3. The tester has good stability and high accuracy
• 4. You just need to turn the knob, then detect the servo.
• 5. It is very useful for testing the governor or motor performance. It is equivalent to a manual receiver function, which simulates the transmitter rudder through the knob.
• Condition: 100% Brand New
• Output: ≤15mA (5.0)
• Input: DC 4.2-6.0V
• Output Signal: 1.5ms ±0.5ms
• Adjustment Method: Manual, Automatic, Median.
• Weight: Approx. 9g / 0.3oz
• Size: Approx. 46 * 32 * 15mm / 1.8 * 1.3 * 0.6in
