RFID Reader/Writer RC522 SPI S50 with RFID Card and Tag

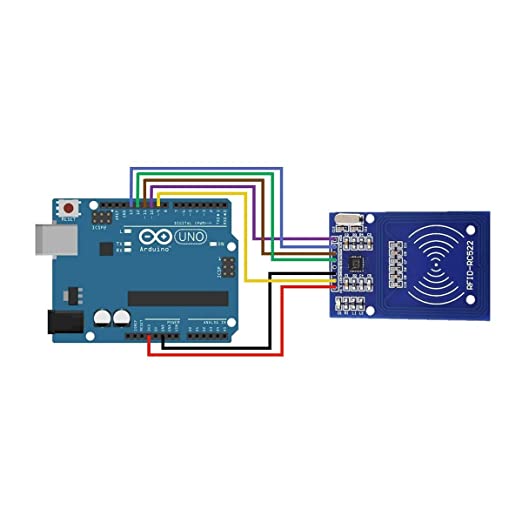

The RC522 module is commonly utilized in applications such as contactless smart card systems, security systems, and access control systems. It allows for communication with RFID cards and tags using radio frequency identification technology. The module supports a variety of communication protocols, making it a versatile tool for various RFID applications. Operating at 13.56 MHz, the RC522 RFID reader/writer is capable of detecting, reading, and writing data to RFID cards and tags within a short range, typically up to a few centimeters. The module interfaces with microcontrollers, such as Arduino, Raspberry Pi, and other development boards, via SPI (Serial Peripheral Interface), which ensures fast and reliable communication. The RC522 RFID module features an antenna embedded in its compact circuit board, allowing for easy integration into different projects. The module can operate on a supply voltage of 3.3V, making it compatible with low-power circuits and systems. Its small form factor and low power consumption make it an ideal choice for portable and battery-powered applications.

Features:-

• Integrated MF RC522
• 13.56MHz contactless communication card chip.
• Low-voltage, low-cost, small size of the non-contact card chip to read and write.
• Suitable for Smart meters and portable handheld devices.
• Advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols.
• 14443A compatible transponder signals.
• ISO14443A frames and error detection.
• Supports rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.
• MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.
• Low cost, and ideal for user equipment development.
• The reader and RF card terminal design meets advanced applications development and production needs.
• Can be directly loaded into the various reader molds, very convenient.

RC522 RFID 13.56MHZ Reader Writer Module Specifications:-

• Operating Current :13-26mA / DC 3.3V
• Idle Current :10-13mA / DC 3.3V
• Sleep Current: < 80uA
• Peak Current: < 30mA
• Operating Frequency: 13.56MHz
• Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DES Fire
• Environmental Operating Temperature: -20 – 80 degrees Celsius
• Environmental Storage Temperature: -40 – 85 degrees Celsius
• Relative humidity: relative humidity 5% – 95%
• Reader Distance: ≥ 50mm / 1.95″ (mifare 1)
• Module Size: 40mm × 60mm
• Module interface: SPI
• Data transfer rate: Maximum 10Mbit/s

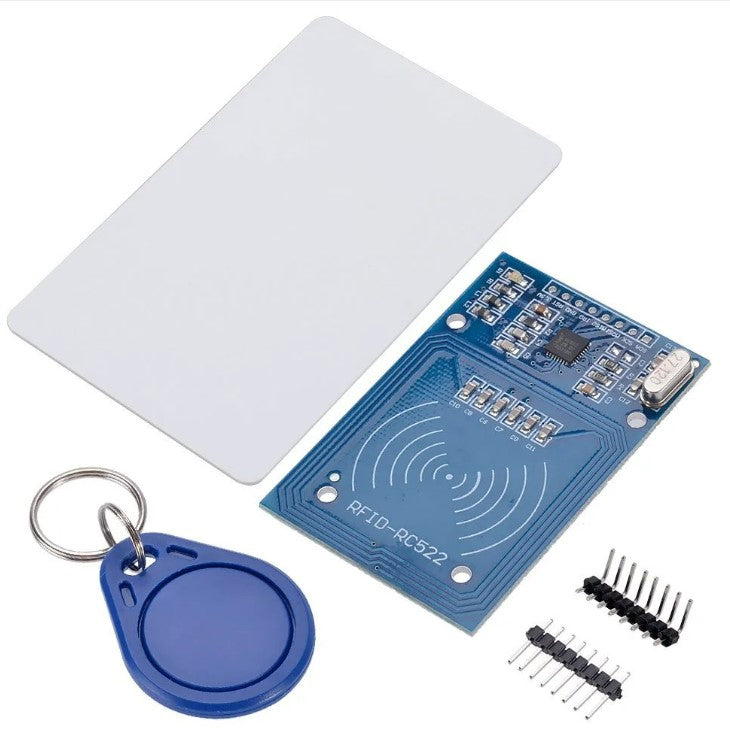

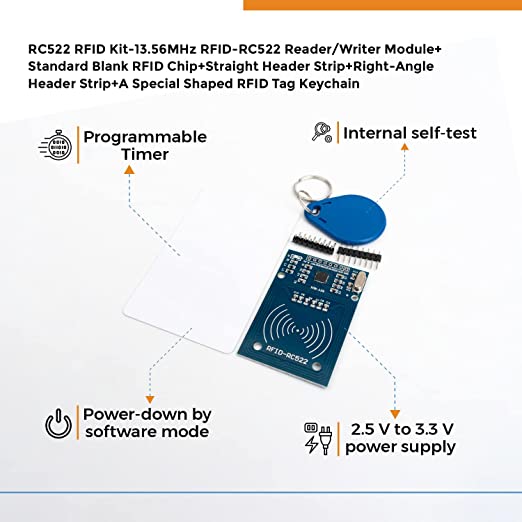

Package Includes:-

• 1x  A RFID-RC522 Module

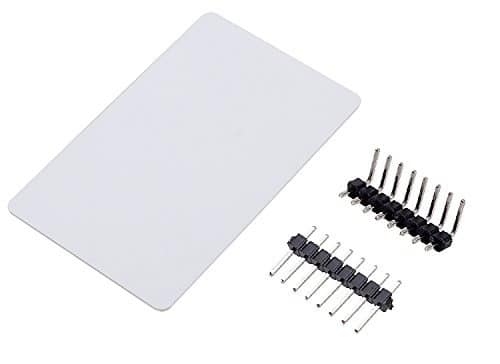

• 1x  RFID Blank Card
• 1x  special-shaped card (as shown by the key ring shape)
• 1x Straight Pin
• 1x Curved Pin
