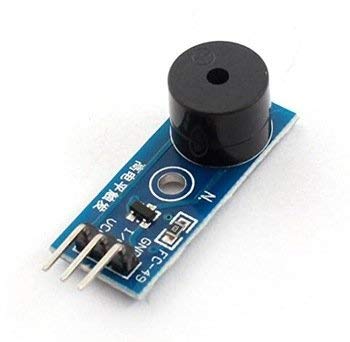

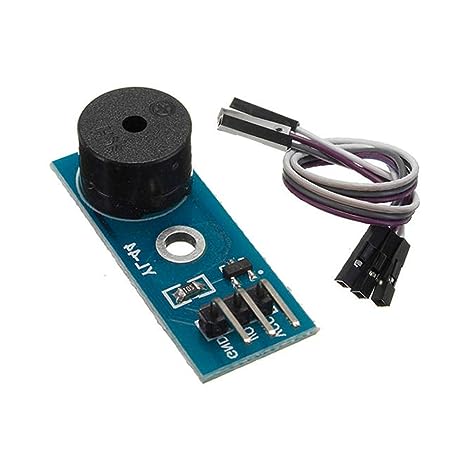

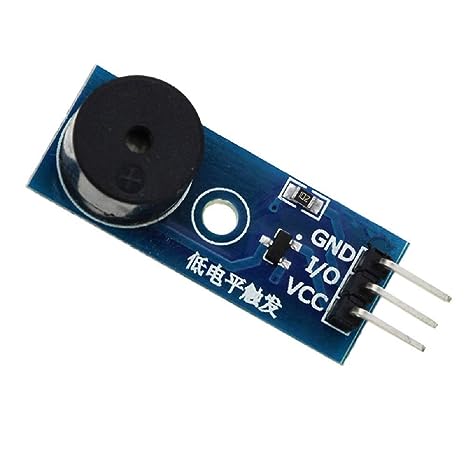

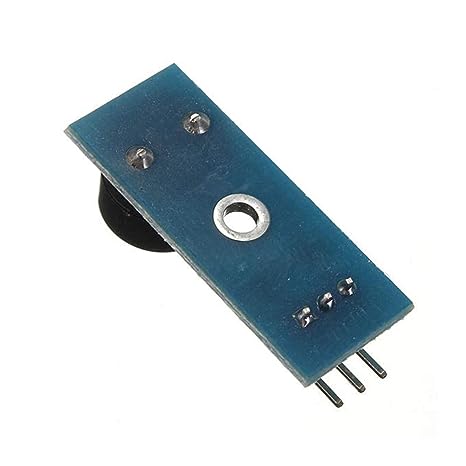

Passive Buzzer Module Low Level-Triggered the Sound Module Buzzer Control
Passive Buzzer Module Low Level-Triggered the Sound Module Buzzer Control
Regular price
Rs. 59.00
Regular price
Sale price
Rs. 59.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product description:-
- passive buzzer is characterized:1. Passive internal without shock source, so if the DC signal cannot be its tweet. Must use 2K ~ 5K of square wave to drive it
- 2.Sound controllable frequency may be made "duo flammi by Sola West effect.
- 3.in some particular case, the can and LED reuse one control port
- active buzzer is characterized:
- 1. Active buzzer internal band shock source, so long as a electric will call
- 2.program is easy to control, single-chip a high level and low level can make its voice, while passive buzzer wasn't able to do that. Each set of weight is about 6g
- A module description:
- module 9012 transistor drive
- Work voltage 3.3V-5V
- is provided with a fixing bolt hole, easy to install
- small PCB size: 3.3cm * 1.3cm

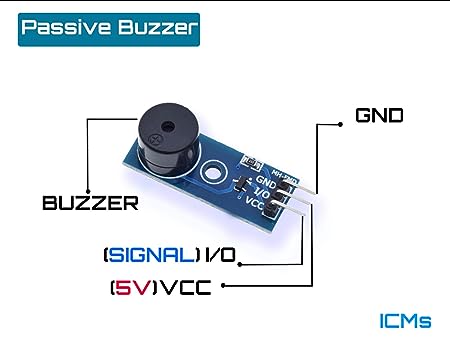

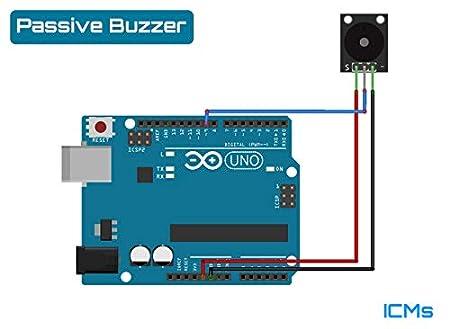

- the second module interface (3-wire):
- VCC add-3.3 V-5V voltage (you can get direct access to 5v MCU and 3.3v SCM connected)
- GND external GND
- I/O add-in in the MCU's I/O ports
- Passive internal without shock source, so if the DC signal cannot be its tweet. Must use 2K ~ 5K of square wave to drive it
- Sound controllable frequency may be made "duo flammi by Sola West effect
- in some particular case, the can and LED reuse one control port
- Work voltage 3.3V-5V;is provided with a fixing bolt hole, easy to install; small PCB size: 3.3cm * 1.3cm
