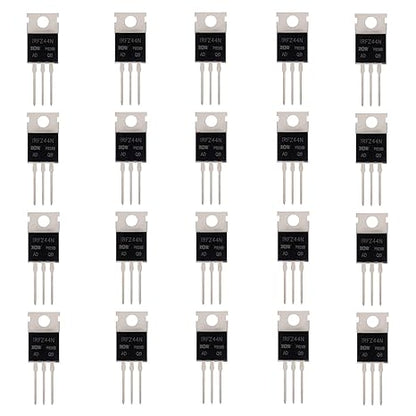

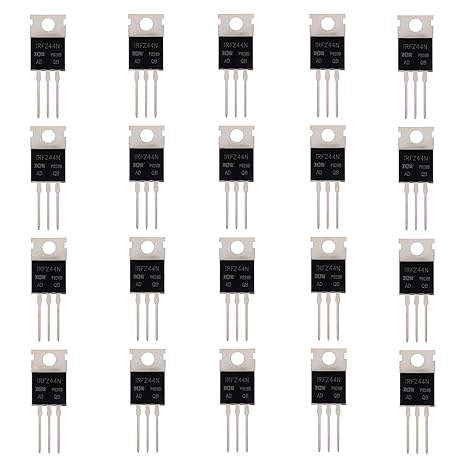

MOSFET IRFZ44 (20 PIECES)
MOSFET IRFZ44 (20 PIECES)
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

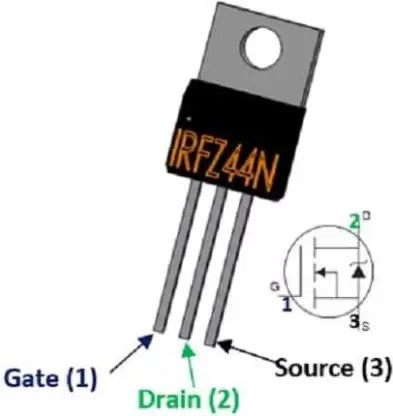

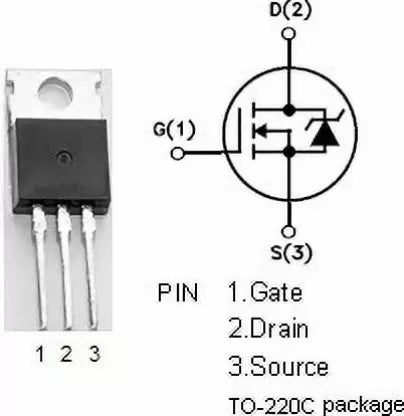

The IRFZ44 is an N-channel MOSFET commonly used for switching and amplifying signals in various applications like power supplies, motor control, and inverters. It features a high current capacity (49A continuous) and a relatively low on-resistance (0.0175 ohms) for efficient switching. The MOSFET is available in a TO-220 package and can handle a drain-source voltage of up to 55V.
Key Specifications:
- Type: N-Channel MOSFET
- Drain-Source Breakdown Voltage (Vds): 55V
- Continuous Drain Current (Id): 49A (at 25°C)
- On-State Resistance (Rds(on)): 0.0175 ohms
- Gate Threshold Voltage (Vgs(th)): Typically 2-4V
- Gate-Source Voltage (Vgs): ± 20V
- Power Dissipation (Pd): 94W
- Operating Temperature: -55°C to +175°C
- Package: TO-220
