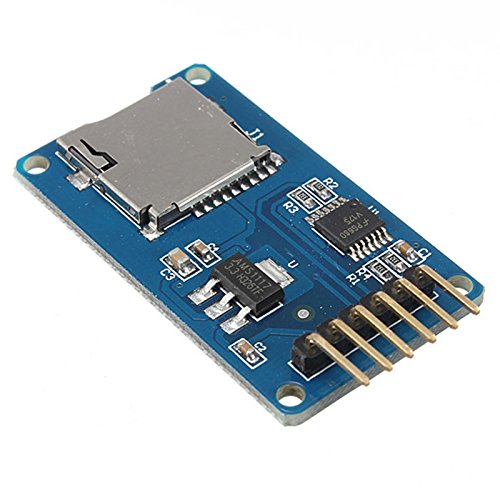

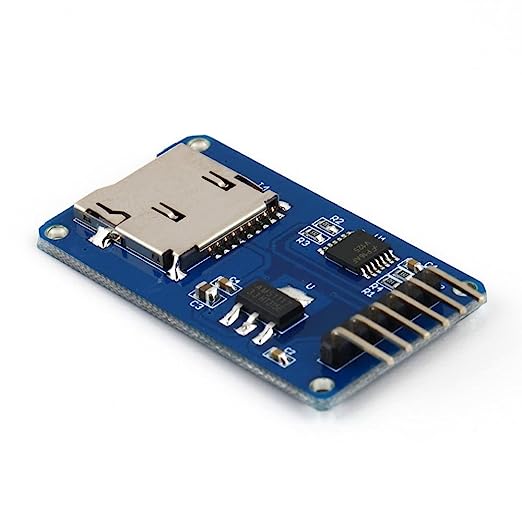

Micro SD Card Module Reader

_{QUICK OVERVIEW:-}

• _{Power Supply: 4.5V – 5.5V, 3.3V}
• _{Positioning Holes: 4 M2 screws positioning hole diameter of 2.2mm}
• _{Control Interface: GND, VCC, MISO, MOSI, SCK, CS}
• _{Size: 45 x 28mm}
• _{Net weight: 6g}
• Communication interface is a standard SPI interface
• Power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
• MicroSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal

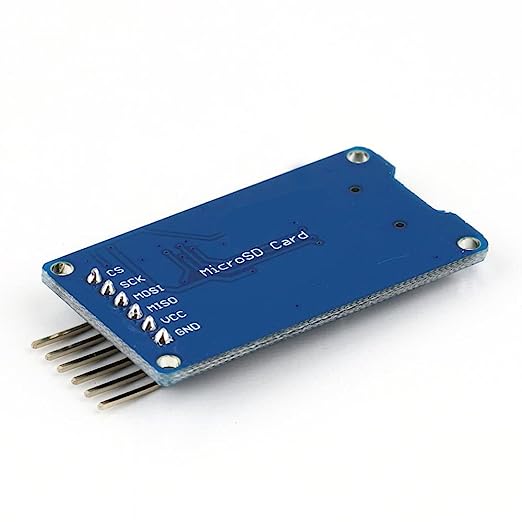

• A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is SPI bus, CS is the chip select signal pin

        _{Product Description:-}

_{Micro SD Card Reader Module also called Micro SD Adaptor which is designed for dual I/O voltages. The Module is a simple solution for transferring data to and from a standard SD card. The pinout is directly compatible with Not only with Arduino, but can also be used with other microcontrollers. Micro SD Card Reader Module has an SPI interface which is compatible with any sd card and it uses 5V or 3.3V power supply which is compatible with Arduino UNO/Mega.SD module has various applications such as data logger, audio, video, graphics.}

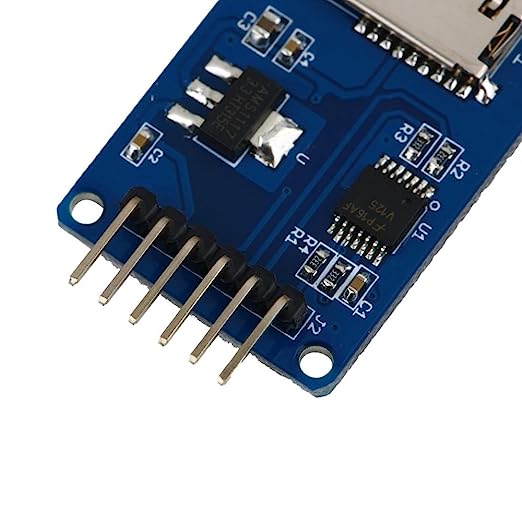

_{The module (MicroSD Card Adapter) is a Micro SD card reader module and the SPI interface via the file system driver, microcontroller system to complete the Micro SD card read and write files. Users can directly use the Arduino IDE comes with an SD card to complete the library card initialization and read-write. . 3.3V voltage regulator circuit: LDO regulator output is 3.3V level converter chip, Micro SD card supply. Level conversion circuit: Micro SD card into the direction of the signal is converted to 3.3V, MicroSD card interfaces to control the direction of the MISO signal is also converted into 3.3V, general AVR microcontroller system can read the signal , . Micro SD card connector: a self: bomb deck, easy card insertion. Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter: module combination ,}

_{There are total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin; 3.3V regulator circuit: LDO regulator output 3.3V as level converter chip, Micro SD card supply.}

_Features:-

• _{Support Micro SD Card (<=2G), Micro SDHC card (<=32G) (high-speed card)}
• _{The level conversion circuit board that can interface level is 5V or 3.3V}
• _{Power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board}
• _{Communication interface is a standard SPI interface}

_{Package Includes:-}

• _{1 x Micro SD Card Reader Module}
