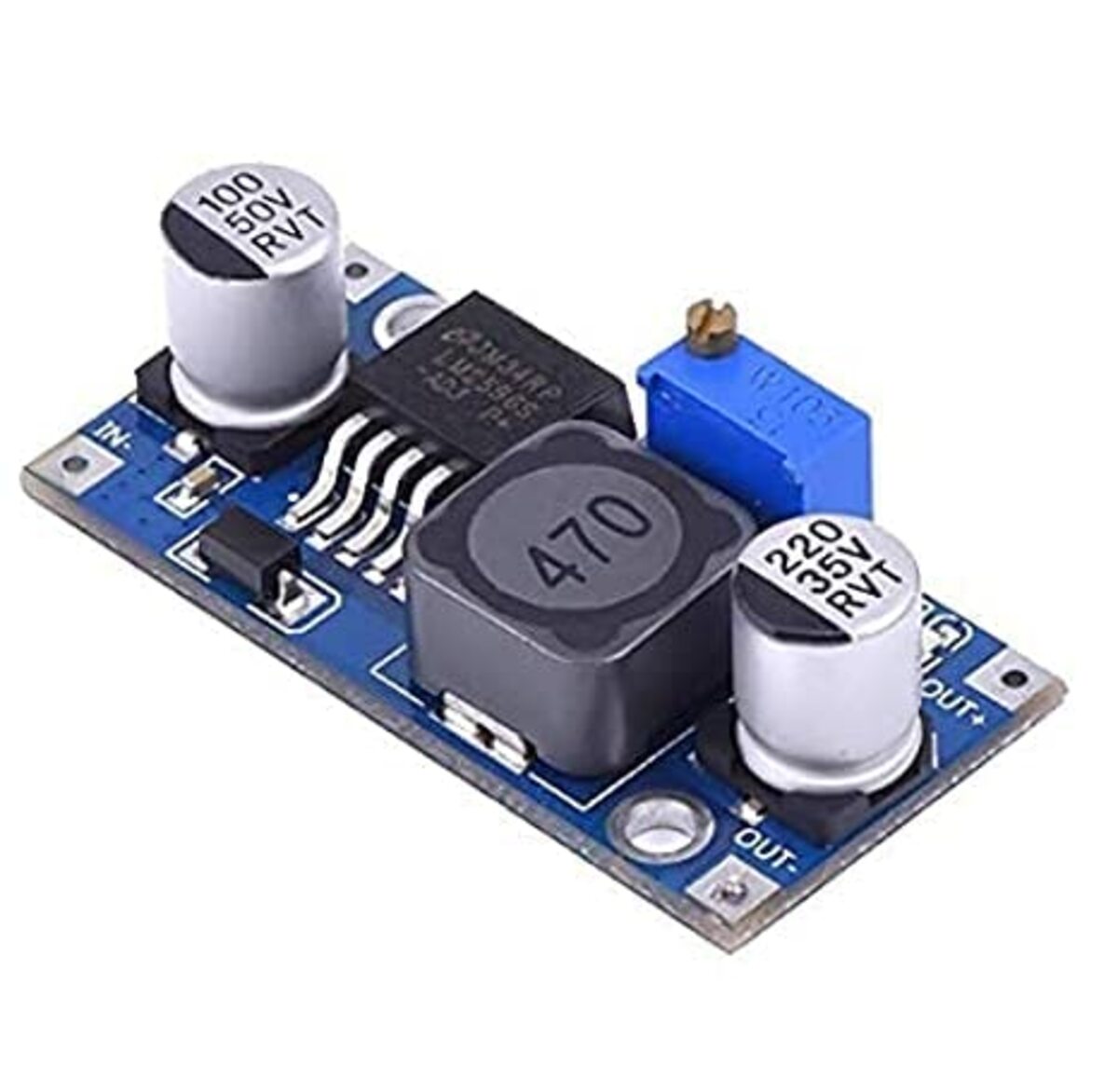

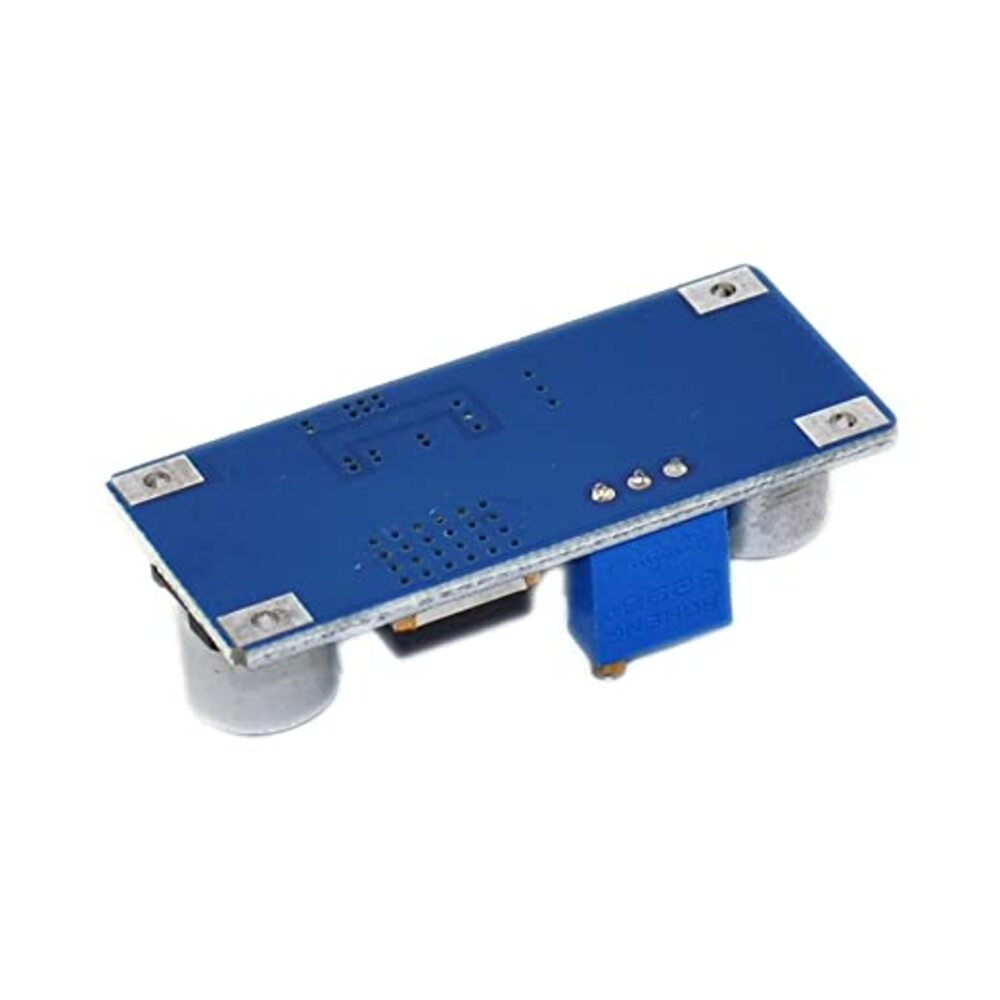

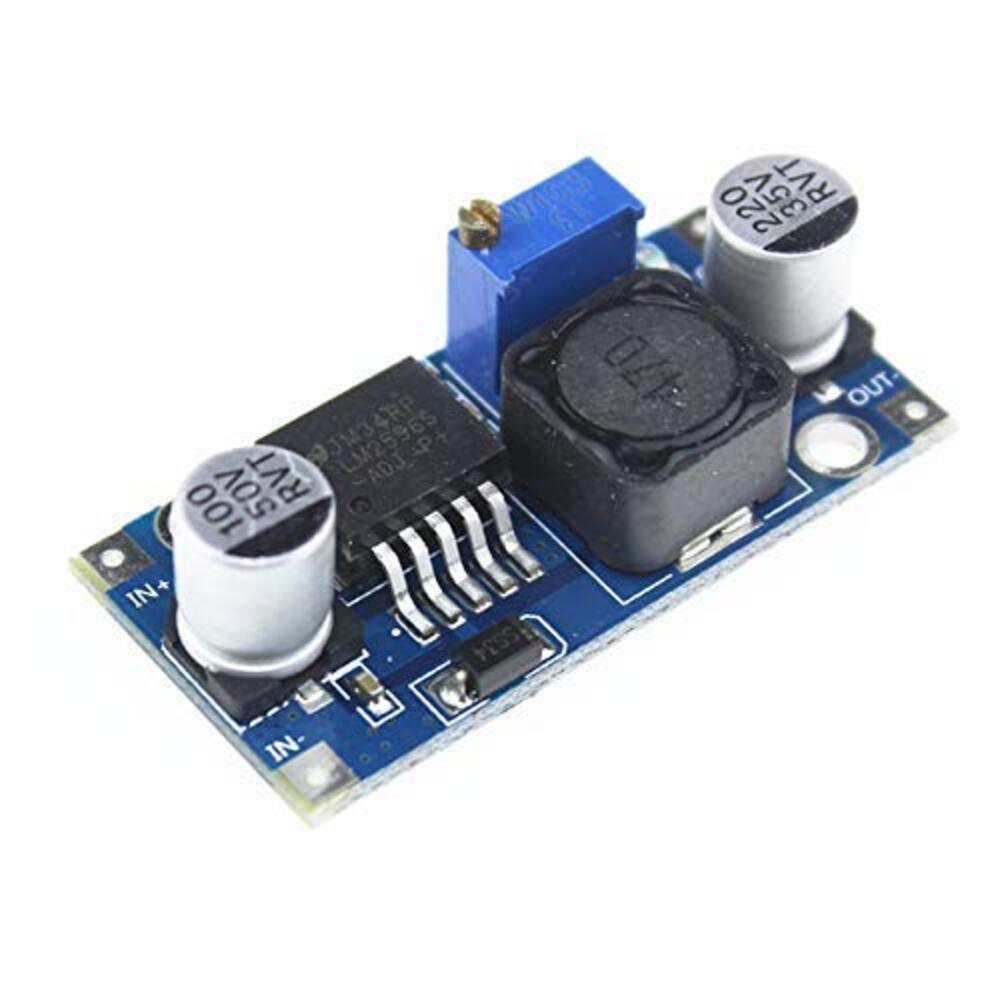

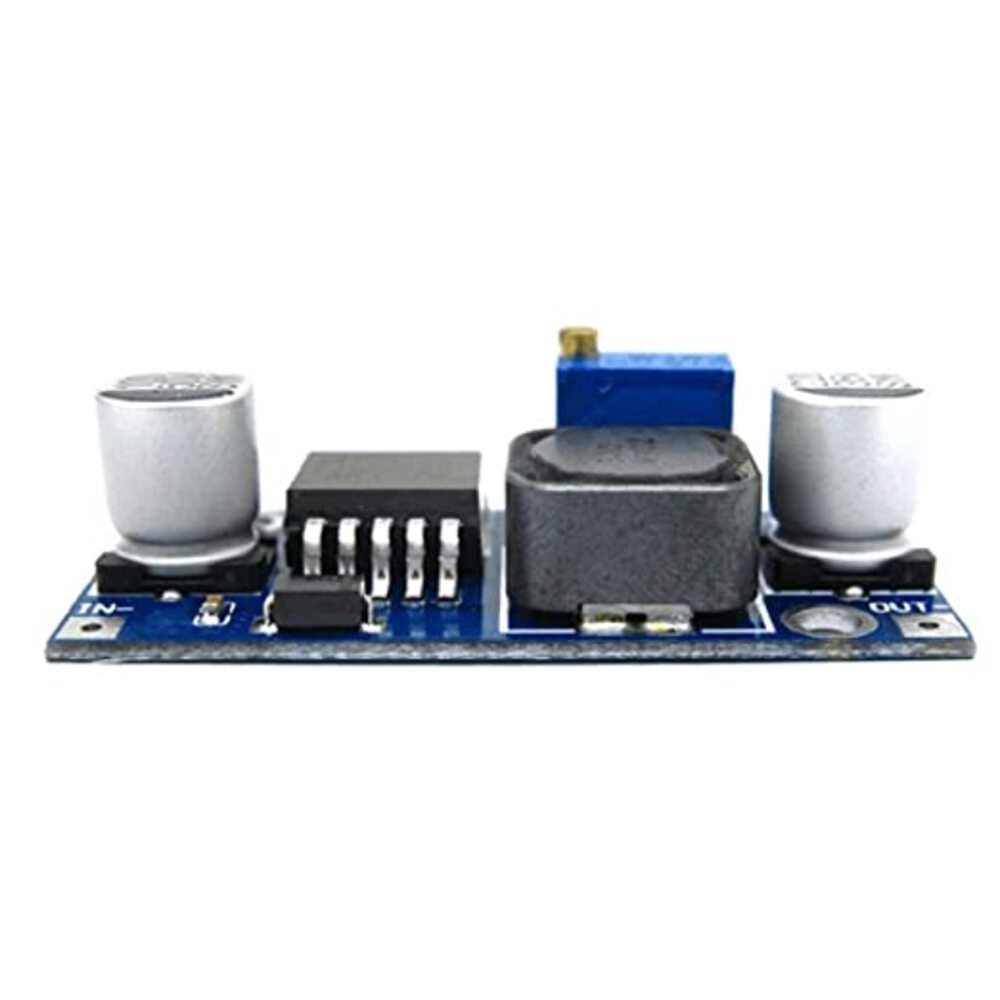

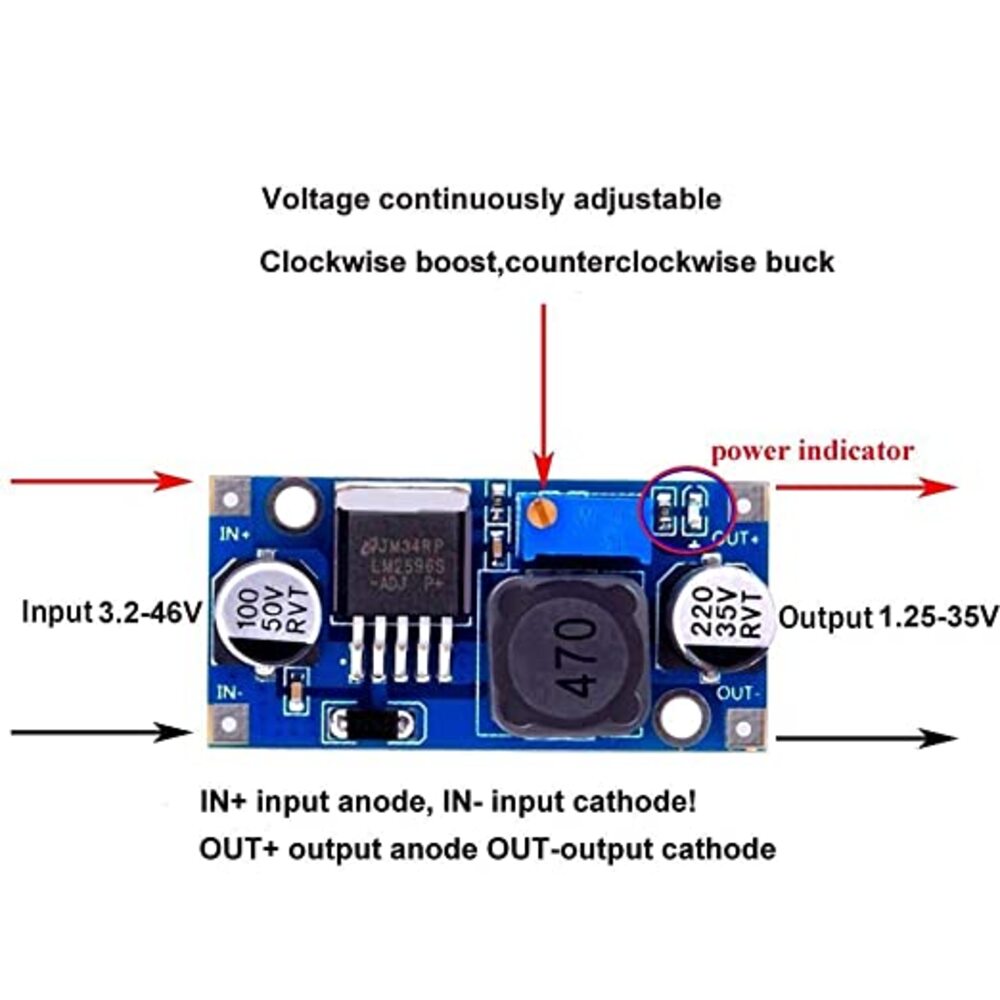

LM2596HVS module is a high input voltage version of the LM2596 Module. The LM2596HV module is a DC to DC converter buck converter module with an input voltage range of 4.5 volts to 50 volts and an output of 3 volts to 40 volts. This output is variable and can be varied using the on-board multi-turn potentiometer.
Features:-
High efficiency up to 92%.
4.5 Volt – 50 Volt adjustable input voltage range.
3 volt – 40 Volts adjustable output voltage range.
With over-current and over-temperature protection, safe for use.
Fine workmanship, long life span.
Can set the float voltage and charging current.
Special design enhanced heating radiating.
QUICK OVERVIEW:-
Input Voltage(VDC): 4 ~ 40.
Output Voltage(VDC): 1.3 ~ 37.
Output Current: 2A Rated, ( 3A maximum with heat sink).
