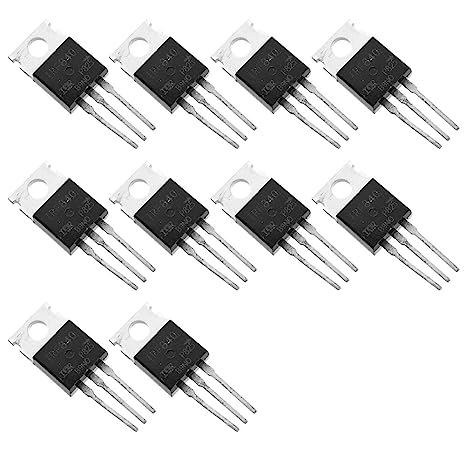

MOSFET IRF840 (10 PIECES )

The IRF840 is an N-channel power MOSFET designed for high-voltage, high-current switching applications. It features a 500V drain-source voltage and can handle a continuous drain current of 8A. The IRF840 is commonly found in TO-220 packages and is known for its fast switching speeds, low on-resistance, and rugged design.

• Continuous Drain Current: 8A (max)
• Drain-to-Source Breakdown Voltage(VDS): 500V
• Gate-to-Source Voltage: ± 20V (max)
• Gate Threshold Voltage(VGS): 4V (max)
• Operating Temperature: -55°C to + 150°C
• On-state resistance: 0.70 Ohm
