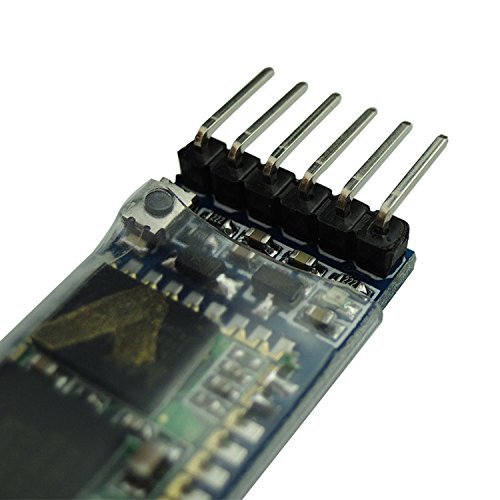

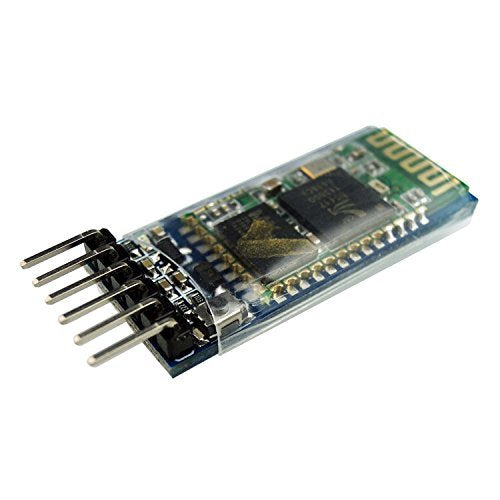

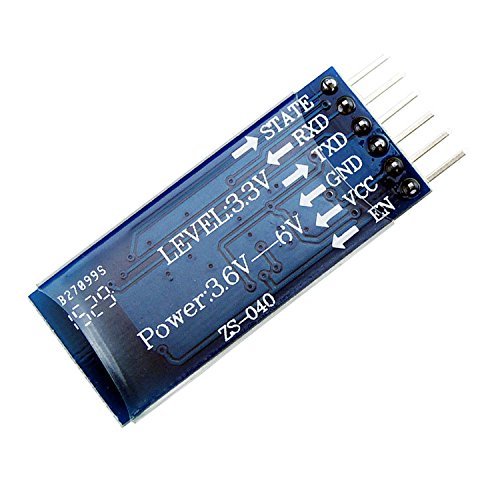

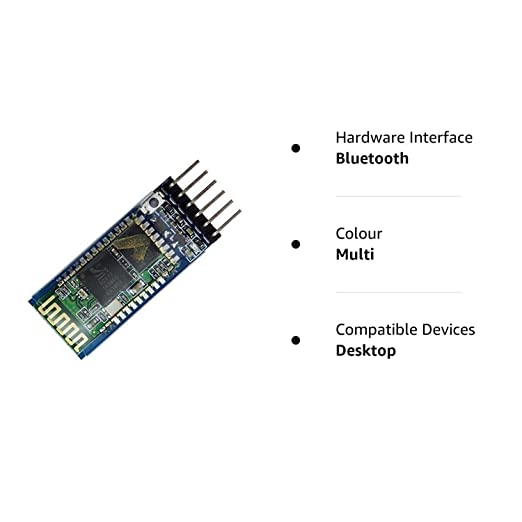

HC 05 6 Pin Bluetooth Module

Product Description:-

HC-05 6 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller.  It uses the UART protocol to make it easy to send and receive data wirelessly.

The HC-06 module is a slave only device.  This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules.  To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.

QUICK OVERVIEW:-

• Frequency: 2.4GHz ISM band
• Modulation: GFSK(Gaussian Frequency Shift Keying)
• Emission power: ≤4dBm, Class 2
• Sensitivity: ≤-84dBm at 0.1% BERCSR Bluetooth Chip Solution
• Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support
• Incredible small size with 3.3V input, and RoHS Compliant
• UART interface and with baud rate setup function

Features:-

• HC‐05 module is an easy to use Bluetooth SPP (Serial Port Protocol) module, designed for transparent wireless serial connection setup. The HC-05 Bluetooth Module can be used in a Master or Slave configuration, making it a great solution for wireless communication.
• Typical ‐80dBm sensitivity.
• Up to 4dBm RF transmit power.
• 3.3 to 5 V I/O.
• PIO(Programmable Input/Output) control.
• UART interface with programmable baud rate.
• With integrated antenna.
• With edge connector

Applications:-

• Embedded Projects.
• Industrial Applications.
• Computer and Portable Devices.
• GPS receiver.

Package Includes:-

• 1 x HC-05 6pin Bluetooth Module with Button
