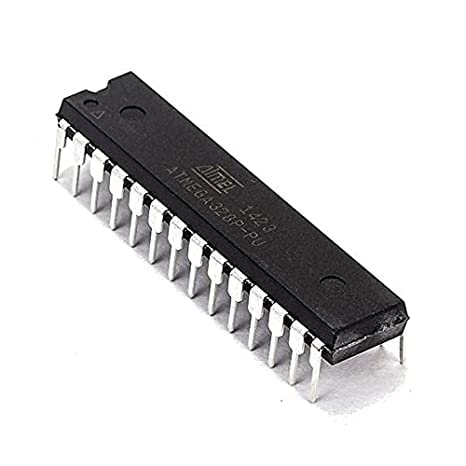

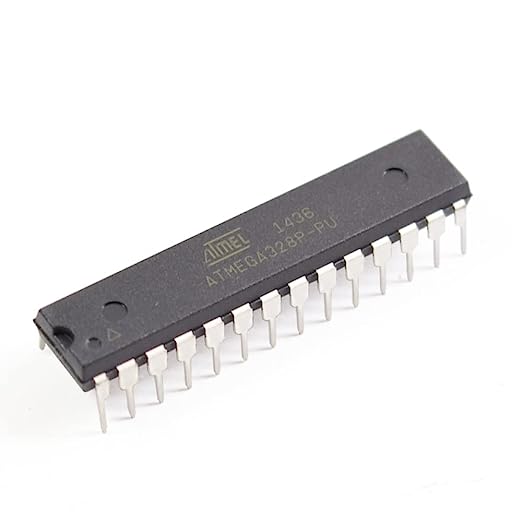

ATmega328P-U PDIP-28 Microcontroller

The ATMEGA328P- U is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega328P-PU achieves throughputs approaching 1 MIPS per MHz allowing the system to optimize power consumption versus processing speed.

The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction in one clock cycle.

Specification

Interface Type: I2C, SPI, USART Program Memory Size (kB): 32 Data RAM size and Type: 2kB SRAM Data ROM Size and Type: 1024 B EEPROM

Features:-

High Performance, Low Power Design: 8-Bit Microcontroller Atmel AVR advanced RISC architecture 131 Instructions most of which are in a single clock cycle Up to 20 MIPS throughput at 20 MHz 32 x 8 working registers 2 cycle multiplier

Memory Includes:-

32KB of programmable FLASH 1KB of EEPROM 2KB SRAM 10,000 Write and Erase Cycles for Flash and 100,000 for EEPROM Optional bootloader with lock bits In System Programming (ISP) by via bootloader True Read-While-Write operation Programming lock available for software security I/O and Package: 23 programmable I/O lines 28 pin PDIP package Speed Grades: 0-4 MHz at 1.8-5.5V 0-10 MHz at 2.7-5.5V 0-20 MHz at 4.5-5.5V
